Rhino-Rack RTRB1 BackBone - Toyota RAV4 2019-ON

1 5

Rhino-Rack RTRB1 BackBone - Toyota RAV4 2019-ON

$589.99 NZD

~~$629.00 NZD~~ $589.99 NZD

Sale

Tax included.

Product variants

View full details

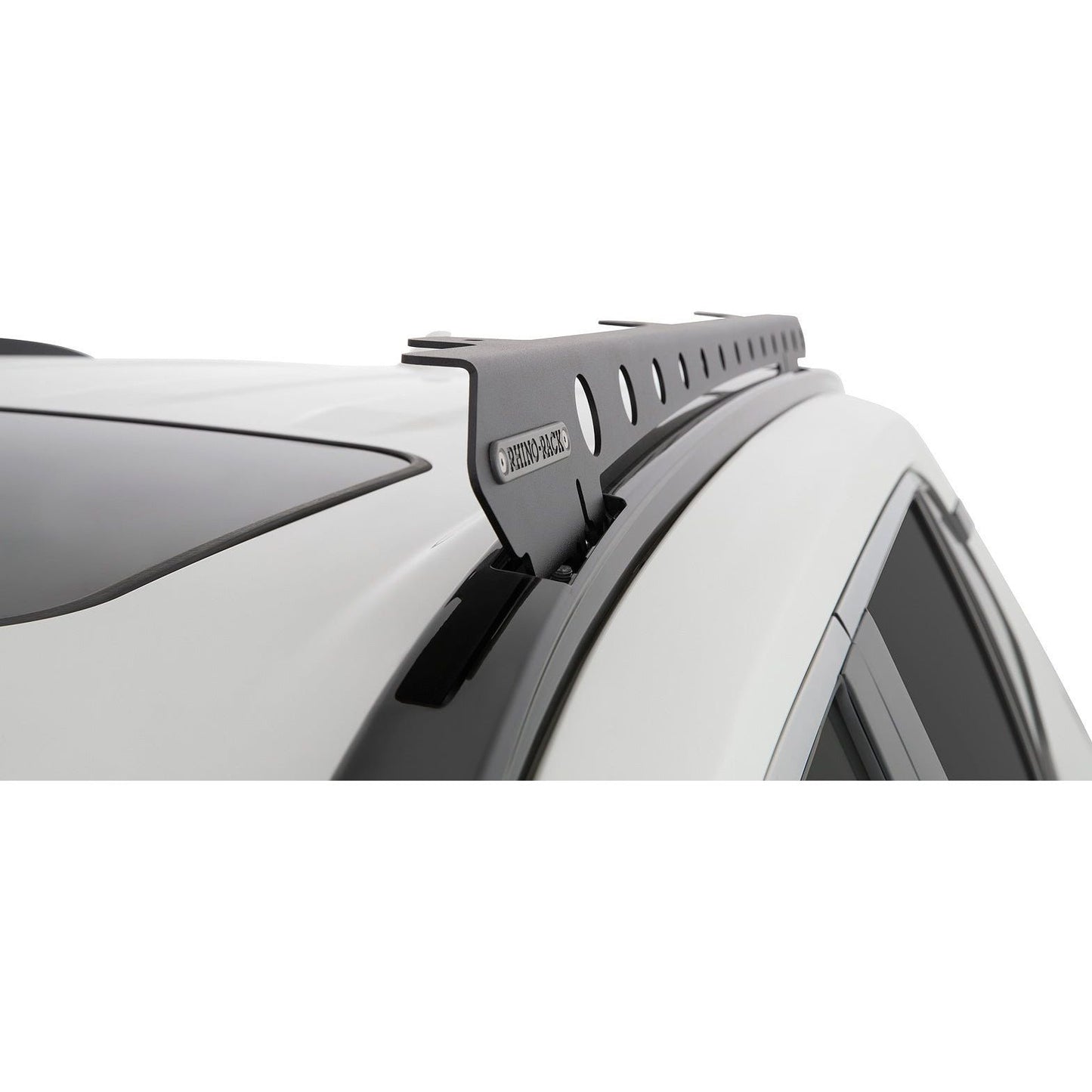

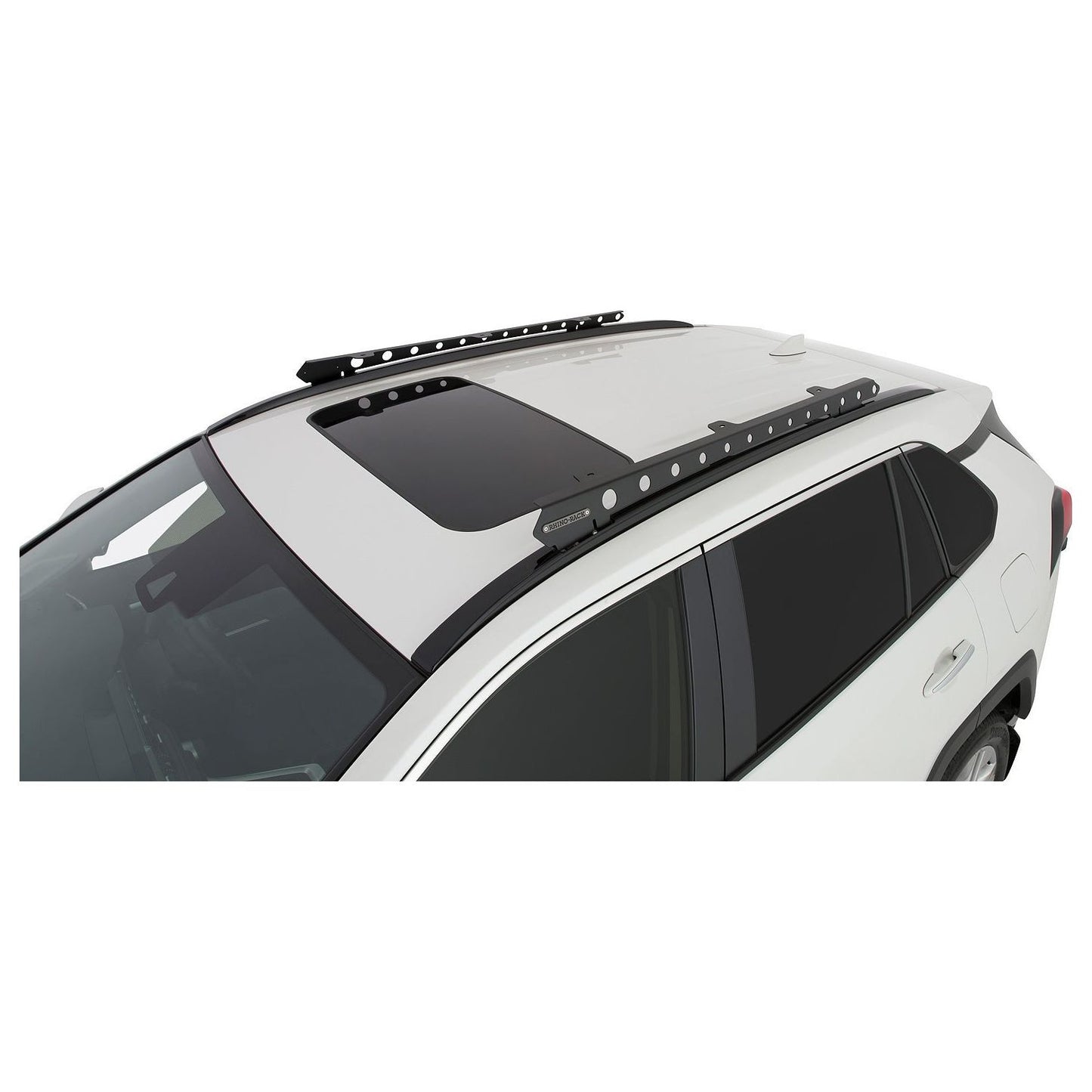

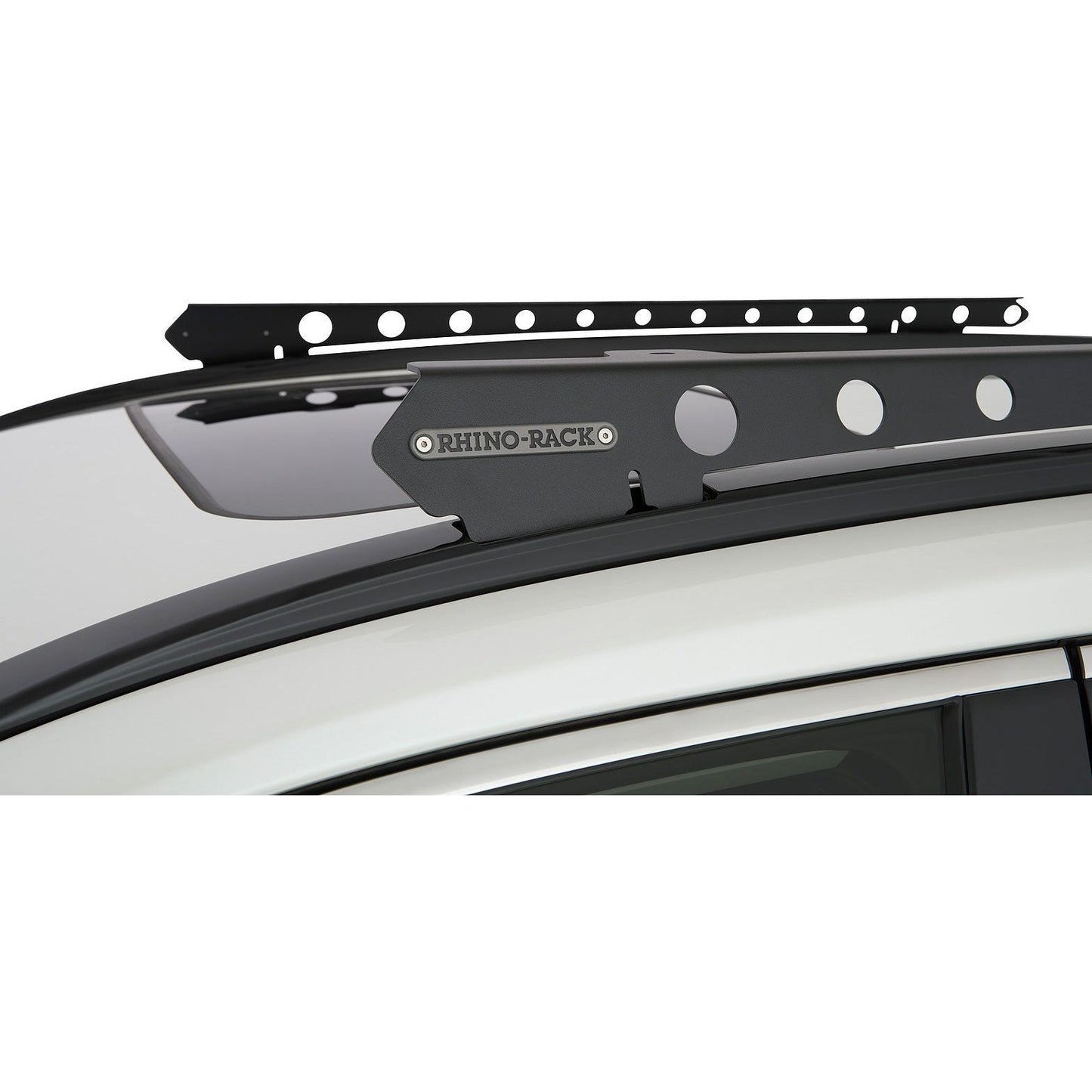

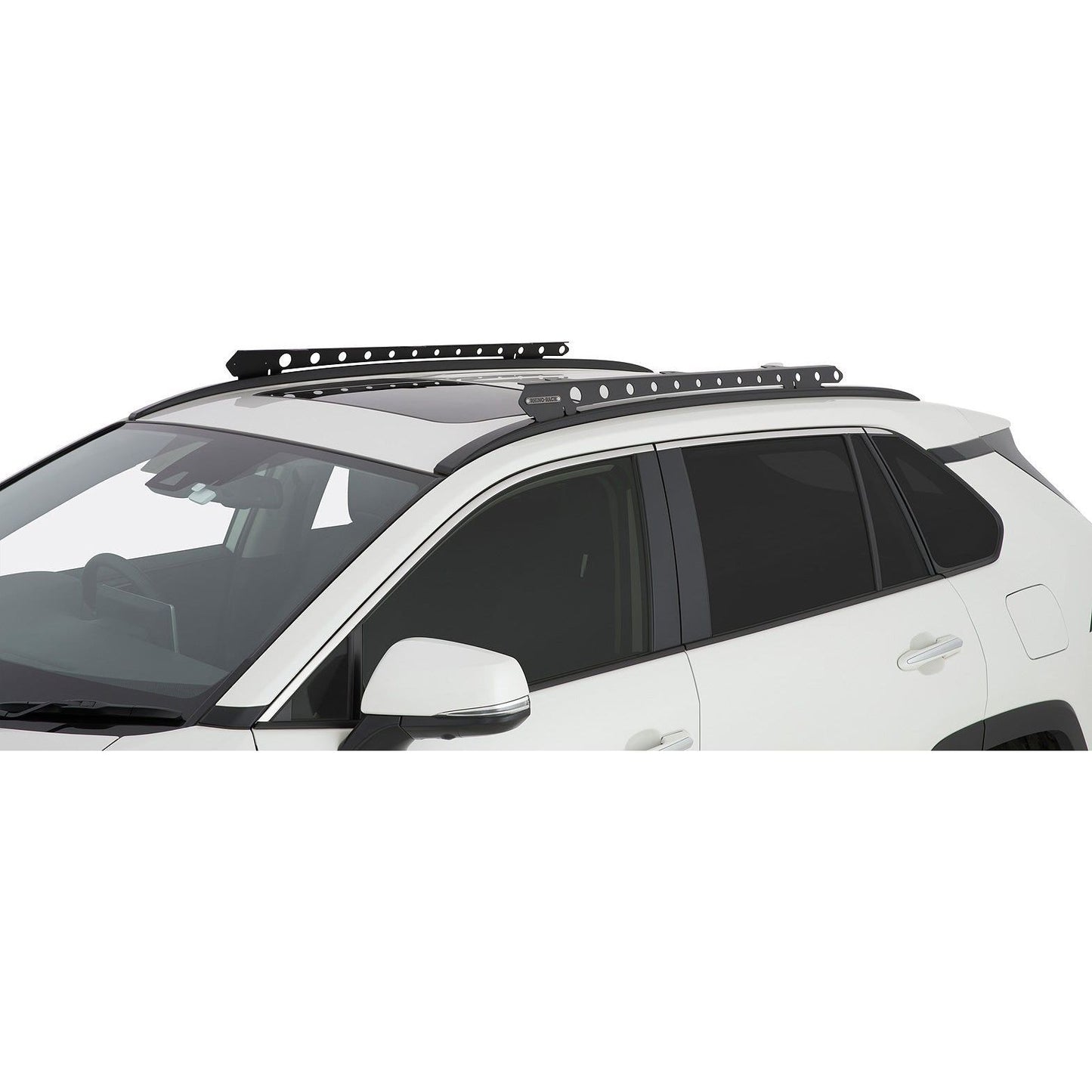

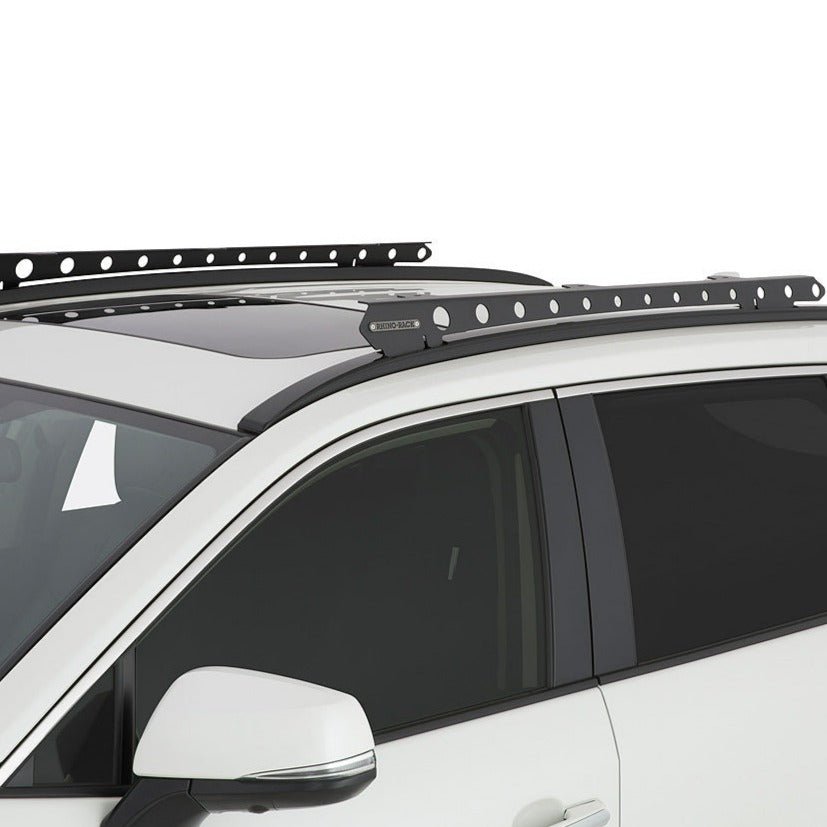

The Rhino-Rack Backbone is a mounting system for the Gen 5 Toyota Rav4 (XA50). Connecting to your vehicle’s solid rails via 2 mounting bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top.

Connecting to your vehicle's roof via 2 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top.

Single person installation
On roof installation directly into the solid rails
No measuring is required
Stylish and low profile design
Black powder coating for increased corrosion resistance
Suits Pioneer Systems: 52109, 52109F, 42109BF & 45109B
1 hour installation time

Vehicle Compatibility:

TOYOTA Rav4 Gen 5, XA50 5dr SUV With Flush Rails 04/19 On

Collection of Rhino-Rack boxes and packaging on a textured surface

🧩 Need the rest of the system?

This Rhino-Rack BackBone is just one part of the full setup.
To complete your Roof Tray System, you'll also need:

👉 Rhino-Rack Pioneer Roof Tray

For a full breakdown of parts required for your vehicle, visit the official Rhino-Rack Fitment Guide

Or make it easy and buy a Full Roof Tray Kit:

🛻 Find Roof Trays by Vehicle
